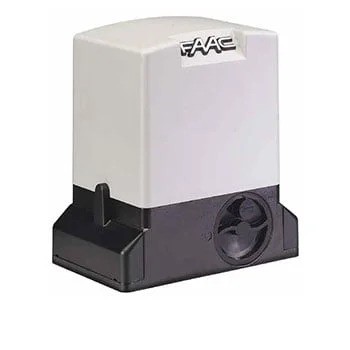

FAAC 740/741 – Professional Sliding Gate Operator
A robust, intelligent electro-mechanical solution featuring integrated encoders and magnetic limit switches for residential sliding gates up to 900 kg.

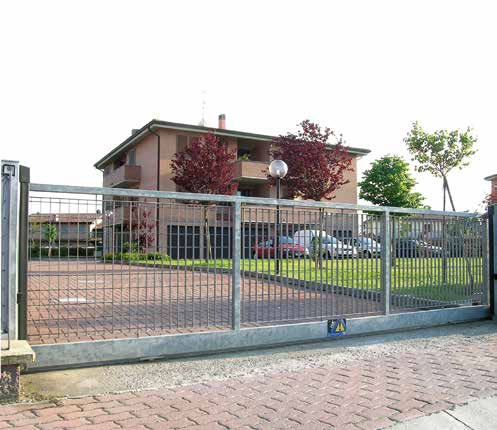

The FAAC 740 and 741 operators are highly advanced electro-mechanical gearmotors built specifically for residential and light-commercial sliding gates. Available in two powerful versions, they handle max weights of 500 kg (740) and 900 kg (741), ensuring that you have the right amount of torque for any gate configuration.
Because the gearmotor is non-reversing, it inherently provides a mechanical lock when closed, meaning no additional electric locks are required. Installation is drastically simplified thanks to the built-in, prewired 740D electronic board. This board features an intuitive LCD display for quick programming, a highly accurate integrated encoder for obstacle detection, and 12 distinct operating logics to suit any homeowner’s needs.
Key Features & Benefits
1. Quick & Easy Installation
The internal 740D electronic control board comes built-in and prewired. Installers simply mount the motor, connect the main power supply, and use the user-friendly LCD interface to set up the system in minutes.
2. High-Precision Integrated Encoder
Safety is paramount. The newly integrated encoder allows for highly accurate reverse function on obstacles. If the gate hits a blockage, the encoder instantly reverses the motor, protecting vehicles and pedestrians. It also manages precise partial openings and slow-down phases.
3. Magnetic Limit Switches
Traditional mechanical limit switches can freeze or wear out over time. The 740/741 series utilizes contactless magnetic limit switches, which guarantee perfect stopping positions in all weather conditions, even during heavy snow or rain.
4. Total Programmability (12 Logics)
The system offers 12 operating logics, allowing extreme customization. Whether you want an automatic close timer, a “step-by-step” condominium mode, or a dedicated pedestrian opening, the 740D board handles it seamlessly.
5. Non-Reversing Security
Once the gate closes, the gearmotor locks it tight. Because it is a non-reversing system, it is highly resistant to forced entry, eliminating the need and cost of installing an external electric lock.
6. Key-Protected Manual Release
In the event of a total power failure, the operator features a key-protected release device. A simple turn of your customized key disengages the drive, allowing you to slide the gate open manually with ease.
7. Versatile Accessory Connectivity
The control unit is designed to work with both traditional relay photocells and modern BUS photocells. This provides incredible flexibility when upgrading existing sites or installing new safety perimeters.
8. Intelligent Anti-Crushing Protection
Beyond the encoder, the electronic device directly controls the drive torque, ensuring an additional layer of anti-crushing safety by dynamically adjusting power according to the gate’s resistance.
Technical Specifications
Why Choose the FAAC 740 / 741?
- ✅ Plug & Play Setup – Prewired 740D board with simple LCD interface
- ✅ Zero Mechanical Wear – Magnetic limit switches outlast traditional springs
- ✅ Extreme Safety – Instant obstacle reverse via the integrated encoder
- ✅ Inherent Security – Non-reversing gearmotor locks the gate automatically
- ✅ Future-Proof Connections – Supports both traditional and BUS photocells
Conclusion
The FAAC 740 and 741 series provide the ultimate blend of power, safety, and simplicity. By incorporating intelligent encoders and magnetic limit switches directly into the motor housing, FAAC has created a residential sliding gate operator that practically installs itself while offering unparalleled long-term reliability.
If you need a motor that guarantees safe operation, robust locking, and all-weather durability, the 740/741 family is the undisputed choice.
