FAAC 770N Series – Invisible Underground Swing Gate Operator

FAAC 770N Series – Invisible Underground Swing Gate Operator

The “Invisible” automation for residential swing gates. Maintain your gate’s aesthetic while enjoying high-performance electromechanical power.

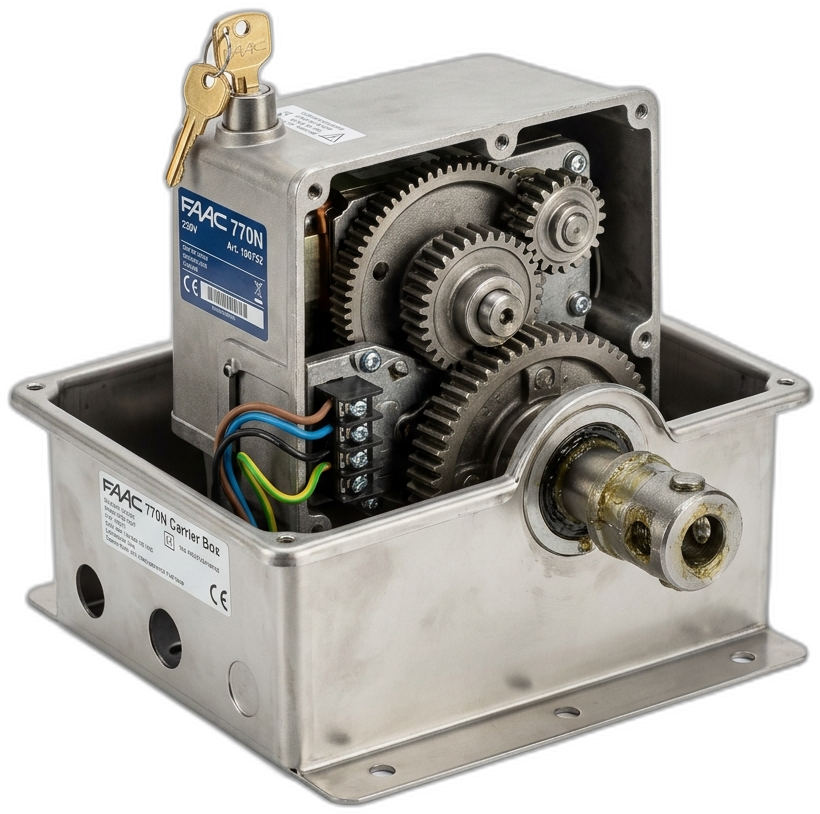

The FAAC 770N is the perfect choice for high-end residential gates where the automation should be felt, but not seen. By installing the motor completely underground inside a load-bearing foundation box, the original design of the gate remains untouched.



---

The FAAC 770N Model Variations

Available in two distinct power architectures to match your specific daily cycle and safety requirements:

---

Detailed Technical Specifications

Feature	770N (230V)	770N 24V
Power Supply Voltage	230 Vac (+6%-10%) 50Hz	24 Vdc
Absorbed Power	380 W	70 W
Absorbed Current	1.7 A	3 A
Max Traction Thrust	330 Nm	330 Nm
Angular Speed	6°/sec	6°/sec
Max Leaf Length	3.5 m (110°) / 3.0 m (180°)	3.5 m (110°) / 3.0 m (180°)
Max Leaf Weight	500 kg	500 kg
Use Frequency (at 20°C)	S3 – 30% (20 cycles/hr)	100% (Continuous)
Protection Class	IP 67	IP 67
Operating Ambient Temp	-20° C ÷ +55° C	-20° C ÷ +55° C
Max Opening Angle	110° (187° with kit)	110° (187° with kit)
Operator Dimensions	360 x 150 x 140 mm	360 x 150 x 140 mm

---

Key Features & Benefits

• ✅ Total Invisibility – Preserves the gate’s original architecture and design
• ✅ Electromechanical Precision – High-torque output with low noise levels
• ✅ Easy Maintenance – Access the operator without removing the gate leaf
• ✅ All-Weather Reliability – IP67 rating ensures operation even if the foundation box is submerged

---
