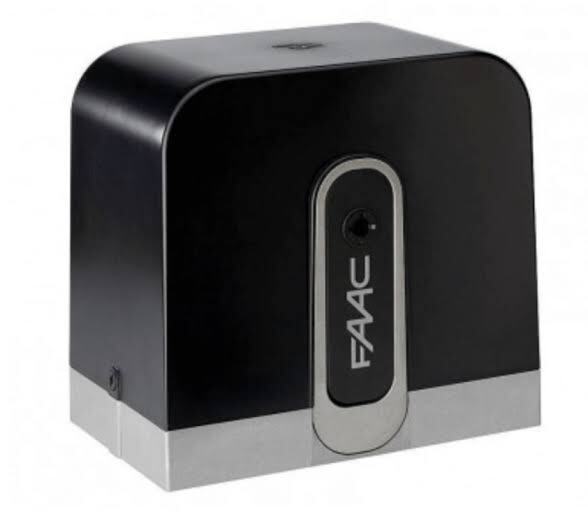

FAAC C720 / C721 – Low-Voltage High-Speed Sliding Gate Operator

A masterstroke of modern engineering. Utilizing a patented mobile-axis reduction system to achieve >80% mechanical efficiency and continuous, whisper-quiet 24Vdc operation.

The FAAC C720 and C721 represent the next generation of sliding gate automation. Unlike traditional gearmotors, they utilize a revolutionary, FAAC-patented mobile-axis reduction principle. This results in an exceptionally high mechanical yield (>80%), meaning less energy is wasted as heat and more is converted into pure pushing force.

Because they operate entirely on a 24Vdc low-voltage architecture, these motors are intrinsically safe and are rated for continuous, non-stop use without ever overheating. Coupled with built-in magnetic limit switches and highly intelligent anti-crushing encoders, the C720/C721 series is the ultimate choice for both high-end residential and demanding commercial properties.

The FAAC C720 / C721 Model Variations

The series is divided into two distinct power classes, ensuring there is a perfectly optimized 24V motor for your specific gate weight:

FAAC C720 (Up to 400 Kg)

Designed for high-end residential and light-commercial applications. The C720 utilizes a highly efficient 220W, 3200 RPM motor to move gates weighing up to 400 kg at a rapid speed of 18 meters per minute. It incorporates the E720 control board.

FAAC C721 (Up to 800 Kg)

The heavy-duty commercial variant. It features an uprated 290W, 3600 RPM motor capable of generating 30 Nm of torque and 530 N of pure thrust. This allows it to effortlessly control massive gates up to 800 kg, while still maintaining the rapid 18 m/min gate speed and continuous use frequency. It incorporates the E721 control board.

Universal Features Across Both Models

1. Patented Mobile-Axis Reduction

This FAAC exclusive technology provides over 80% mechanical efficiency. It drastically reduces noise, vibration, and component wear, resulting in one of the smoothest running gate motors on the global market.

2. Electronic Anti-Crushing Encoder

Because it operates on 24Vdc, the built-in electronic encoder can monitor the motor’s torque with extreme precision. If an obstacle is detected, the motor immediately stops and reverses, guaranteeing maximum safety.

3. Continuous Use Rated

The 24V architecture means there is virtually no risk of thermal overload. Unlike 230V residential motors that require cooling periods, the C720 and C721 are rated for Continuous Use, able to open and close non-stop all day.

4. Master-Slave Synchronization

Using the E721 board, two opposing sliding gates can be perfectly synchronized in a Master-Slave configuration, allowing them to open and close together as a single cohesive unit.

Technical Specifications

Feature	FAAC C720	FAAC C721
Power Supply Voltage	230 Vac 50 Hz	230 Vac 50 Hz
Motor Power Supply	24 Vdc	24 Vdc
Power Rating	220 W	290 W
Max Leaf Weight	400 kg	800 kg
Absorbed Current	7 A	12 A
Electric Motor RPM	3,200 r.p.m.	3,600 r.p.m.
Max Torque	18 Nm	30 Nm
Thrust on Gate	320 N	530 N
Gate Speed	18 m/min	18 m/min
Limit Switch	Magnetic	Magnetic
Use Frequency	Continuous Use	Continuous Use
Control Board	E720 Incorporated	E721 Incorporated
Operating Temp	-20°C to +55°C	-20°C to +55°C
Protection Class	IP 44	IP 44
Total Weight	8 Kg	8 Kg

Comprehensive Original Accessories Catalog

To ensure maximum compatibility and performance, FAAC offers a highly specialized range of original accessories for the C720 and C721. Below is the complete catalog of verified add-ons and mounting hardware available for this system:

Item Code	Category	Detailed Description
390923	Power Backup	Emergency Battery Kit XBAT 24 Provides seamless backup power during blackouts, allowing the gate to continue operating without requiring manual key release. Mounts directly inside the motor housing.
410014	Safety Signalling	Flashing Lamp FAACLIGHT 24 Vdc Provides clear visual warning during gate movement. Powered directly by the low-voltage control board (E720/E721) for maximum efficiency.
319006	Radio Receiver	Receiver XF 433 MHz Plug-in radio frequency decoding module. Receives signals from 433 MHz FAAC transmitters.
319007	Radio Receiver	Receiver XF 868 MHz Plug-in radio frequency decoding module. Receives signals from higher-frequency 868 MHz FAAC transmitters.
4901204	Transmission Rack	Nylon Rack with Steel Reinforcement (30×20) Quiet operation nylon rack with internal steel core. Sold in 4m packages with installation accessories. Strictly for gates max 400 kg (C720 only).

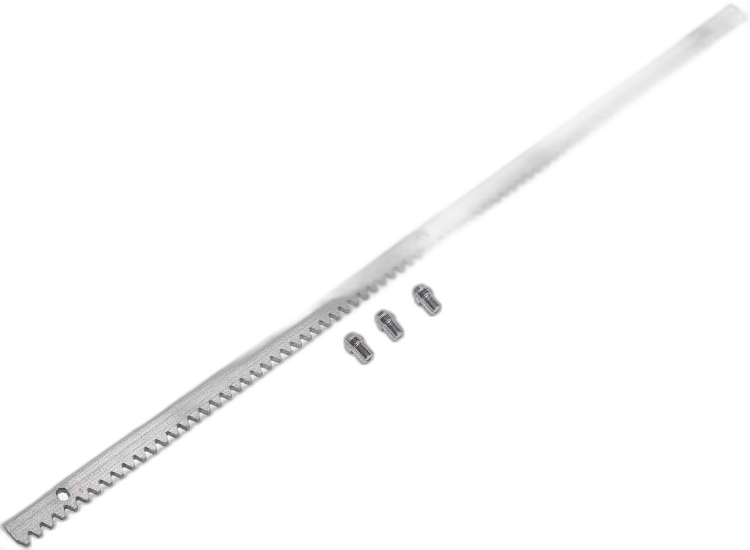

490122	Transmission Rack	Galvanised Rack (30×12) Mod. 4 Heavy-duty steel rack. Includes weld-on fittings. Sold in 4m packages. Ideal for the heavier C721.
490123	Transmission Rack	Galvanised Rack (30×8) Mod. 4 Slimmer steel rack profile. Includes weld-on fittings. Sold in 4m packages.
490124	Transmission Rack	Galvanised Rack (30×12) Mod. 4 Heavy-duty steel rack with fittings to be mechanically secured (bolted/screwed instead of welded). Sold in 4m packages.
490125	Transmission Rack	Galvanised Rack (30×8) Mod. 4 Slimmer steel rack profile with fittings to be mechanically secured. Sold in 4m packages.
424002	Security & Release	Customised Release Lock Kit Sold in 10-piece packages. Replaces the standard manual release mechanism with a more secure configuration.
712501001-36	Security & Release	Release Lock with Customised Key (No. 1 to 36) Highly secure individualized key cylinders (36 unique patterns) to ensure absolute security over the manual release lever.
